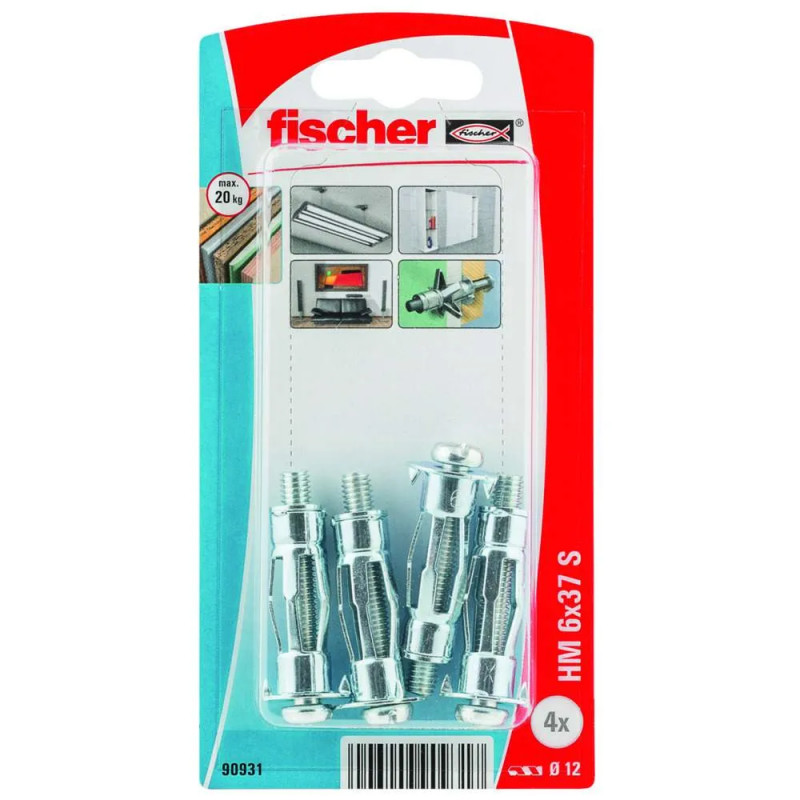

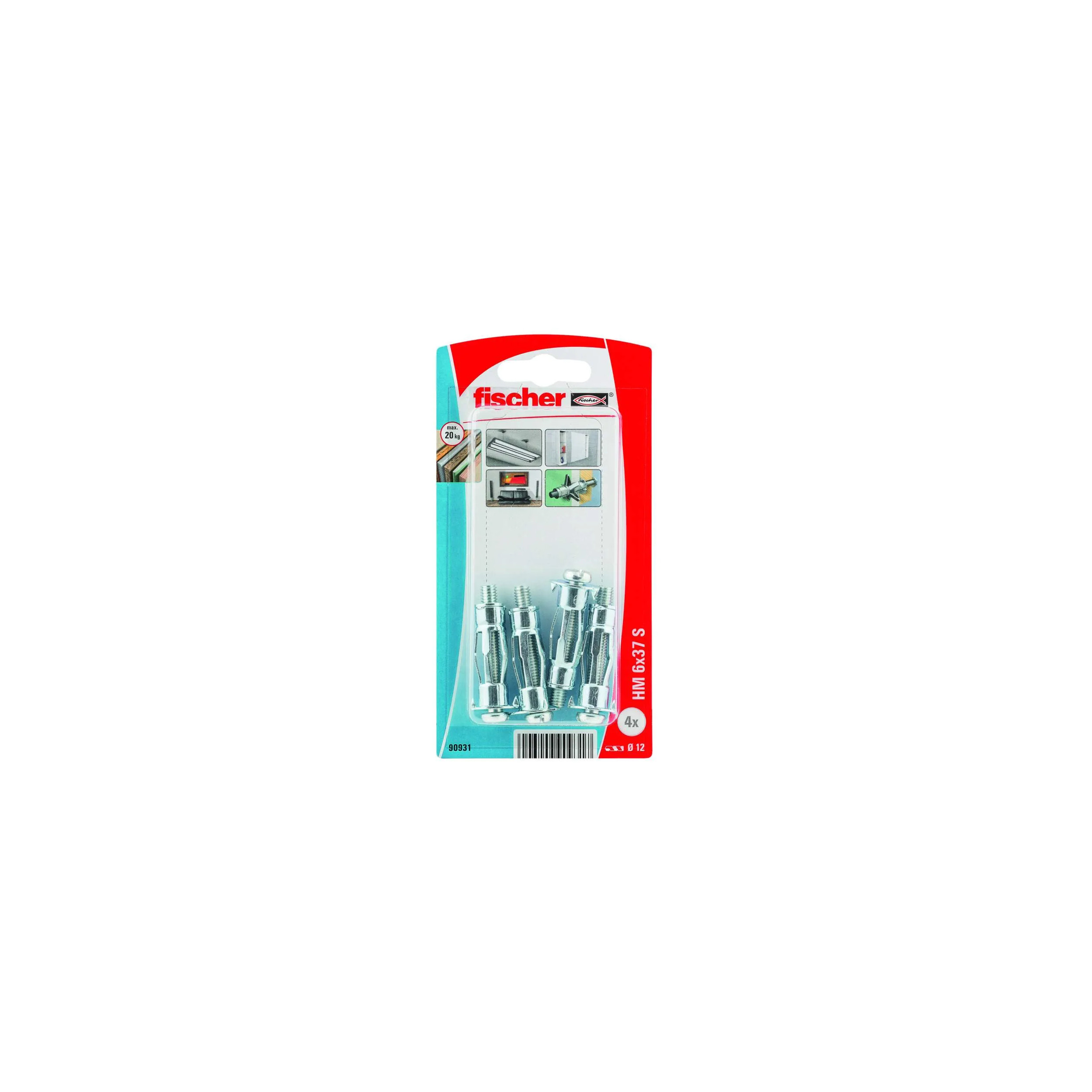

Metal dowel for hollow bodies HM 6x37 S with screw 6x45, 4 pieces
€8.35
Tax Included
(6.96 € HT)
Référence Fischer : 90931
Emplacement magasin : A2-G-051
Cheville placo Fischer. Metal dowel for hollow bodies HM 6x37 S with screw 6x45, 4 pieces reference 90931.
Safety guarantees(to be modified in the "Reinsurance" module)
Delivery policy(to be modified in the "Reinsurance" module)
Returns policy(to be modified in the "Reinsurance" module)
The HM-S metal hollow body anchor is a versatile anchor with metric screw for all panel building materials. The dowel is suitable for stand-off installation and is installed with the HM-Z 1 expansion tool. When installing with the pliers, the dowel is pressed against the panel. The expansion legs fold out and rest on the back of the panel. It can also be installed with a screwdriver or electric screwdriver. The HM-S metal hollow body plug is suitable for fixing lamps, towel rails and curtain rails indoors.
Benefits
- Thanks to its wide range, the HM is suitable for panel thicknesses from 3 to 50 mm and can be used for many applications.
- The metric thread allows multiple unscrewing and screwing of the part to be fastened, which offers optimal flexibility.
- The expansion legs of the HM are supported by a large surface area, which allows a high load capacity.
- The lugs engage in the panel, prevent the plug from turning and thus ensure safe installation.
Main features
- Holding heavy objects in sheet materials by the large contact surface of the spreader arms.
- Flexible during assembly: the screw can be loosened and retightened.
- No rotation: Notches on the peg hold the peg in the plate.
- Suitable for standby installation.
- Complete with metric screw.
Applications
- Frames
- Lamps
- Lightweight wall shelves
- Towel rack
- Bathroom cabinets
- Curtain rods
- Secondary structures
Materials
- Plasterboard and fibreboard
- Hourdis
- Lightweight wood fibre panels
- Chipboard panels
- Plywood panels
Details (building materials, loads, etc.) of the approval, if available, apply
Operation / Assembly
- The HM Hollow Core Anchor is suitable for standby installation.
- The dowel to be used depends on the thickness of the panel, in order to allow an optimal expansion in the cavity.

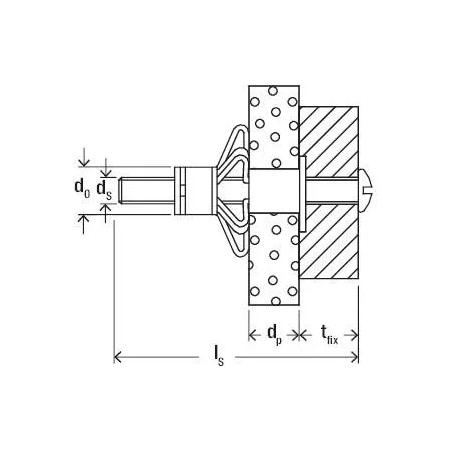

- During installation, the expansion legs unfold and rest on the back of the panel.
- The HM can be installed with an expander. When installing with an electric screwdriver or a screwdriver, the pre-mounted screw must be removed beforehand. When screwing in and expanding the plug, the workpiece to be fastened or another workpiece up to 6 mm thick must be used simultaneously as a rotation lock.
Technical data
| Nominal drill diameter | 12 | [mm] | |
| plate thickness | 6 - 15 | [mm] | |
| Ankle length | 37 | [mm] | |
| Min. drilling depth | 45 | [mm] | |
| Content | 4 x HM 6 x 37, 4 x M 6 x 45 screws |
48 Items
Data sheet
- Length (cm):
- 37
- Width (cm):
- 3,7
- Weight (kg) :
- 0,07
- Packaging:
- 4
- Main materials :
- Contreplaqué
Métal - Warranty:
- 2 years
Specific References
- EAN13
- 4006209909317
- EAN-13
- 4006209909317
- Location
- A2-G-051
- Reference to display
- FISCH26266
- Supplier reference
- 90931
