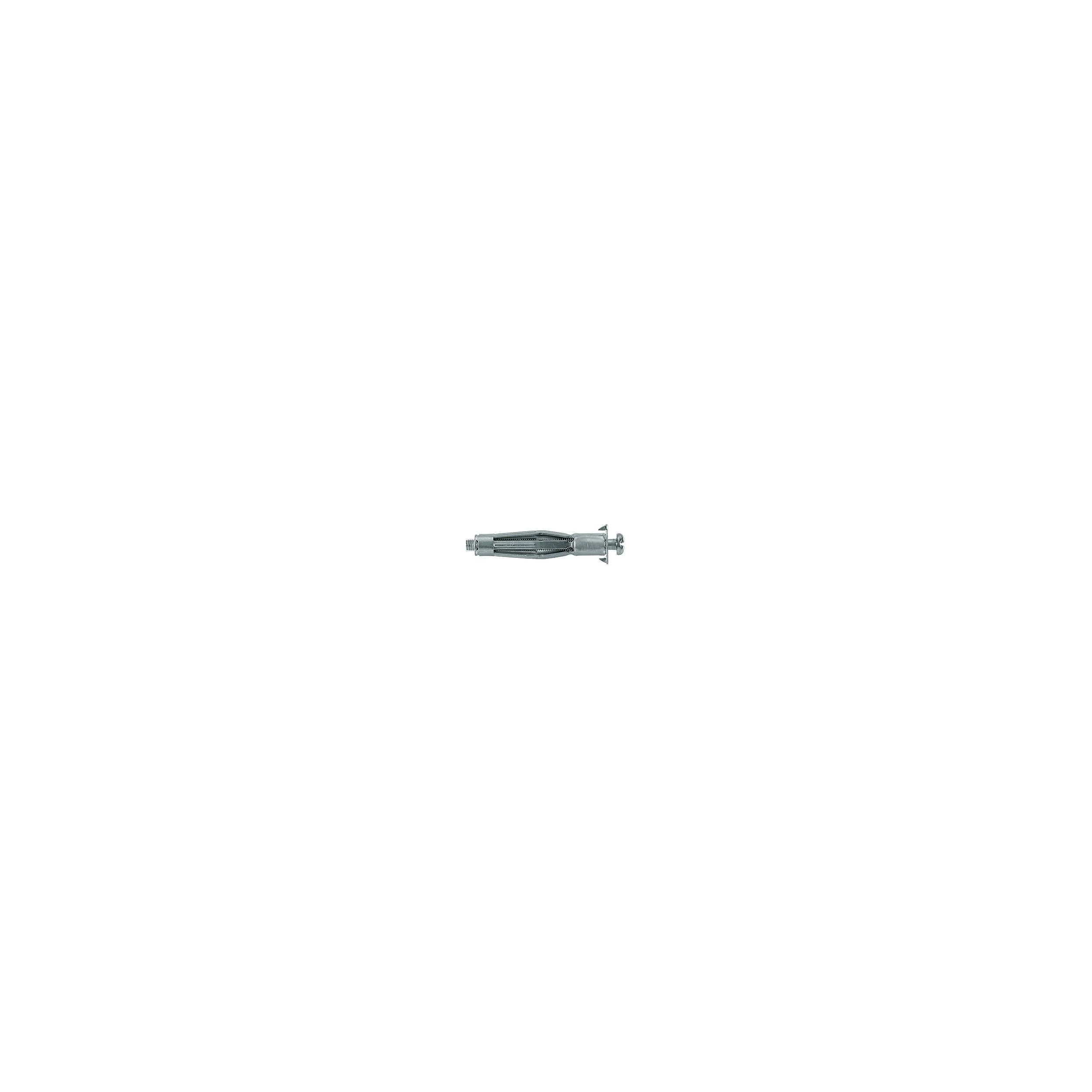

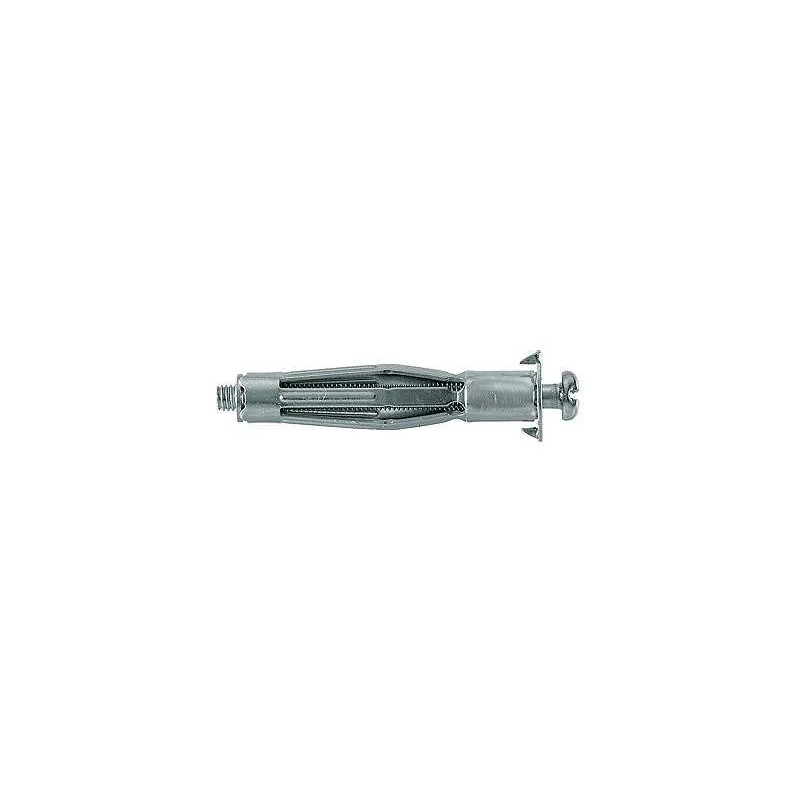

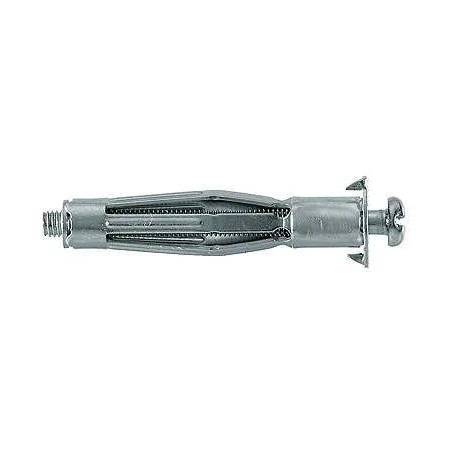

Metal dowel HM 4x46 SPP with screws, 100 pieces
€55.45
Tax Included
(46.21 € HT)
Référence Fischer : 48116
Emplacement magasin : A2-G-051
Cheville placo Fischer. Metal dowel HM 4x46 SPP with screws, 100 pieces reference 48116.
Safety guarantees(to be modified in the "Reinsurance" module)
Delivery policy(to be modified in the "Reinsurance" module)
Returns policy(to be modified in the "Reinsurance" module)

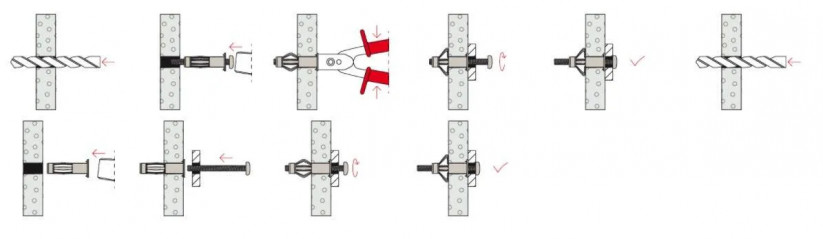

The HM-S metal hollow body anchor is a versatile anchor with metric screw for all panel building materials. The dowel is suitable for stand-off installation and is installed with the HM-Z 1 expansion tool. When installing with the pliers, the dowel is pressed against the panel. The expansion legs fold out and rest on the back of the panel. It can also be installed with a screwdriver or electric screwdriver. The HM-S metal hollow body plug is suitable for fixing lamps, towel rails and curtain rails indoors.
Advantages / Benefits
- Thanks to its wide range, the HM is suitable for panel thicknesses from 3 to 50 mm and can be used for many applications.
- The metric thread allows multiple unscrewing and screwing of the part to be fastened, which offers optimal flexibility.
- The expansion legs of the HM are supported by a large surface area, which allows a high load capacity.
- The lugs engage in the panel, prevent the plug from turning and thus ensure safe installation.
Applications
- Frames
- Lamps
- Lightweight wall shelves
- Towel rack
- Bathroom cabinets
- Curtain rods
- Secondary structures
Materials
- Plasterboard and fibreboard
- Hourdis
- Lightweight wood fibre panels
- Chipboard panels
- Plywood panels

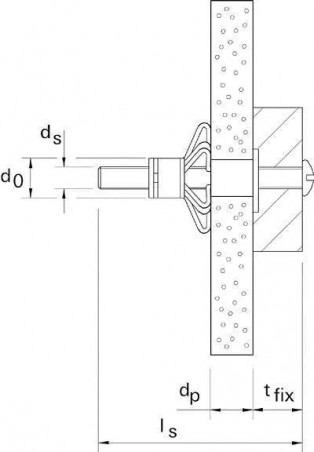

| Nominal drill diameter | d0 | 8 | [mm] |
| plate thickness | dp | 16 - 23 | [mm] |
| Ankle length | l | 46 | [mm] |
| Min. drilling depth | h1 | 52 | [mm] |
1 Item
Data sheet
- Weight (kg) :
- 1,1
- Warranty:
- 2 years
Specific References
- EAN13
- 4006209481165
- EAN-13
- 4006209481165
- Location
- A2-G-051
- Reference to display
- FISCH48116
- Supplier reference
- 48116
