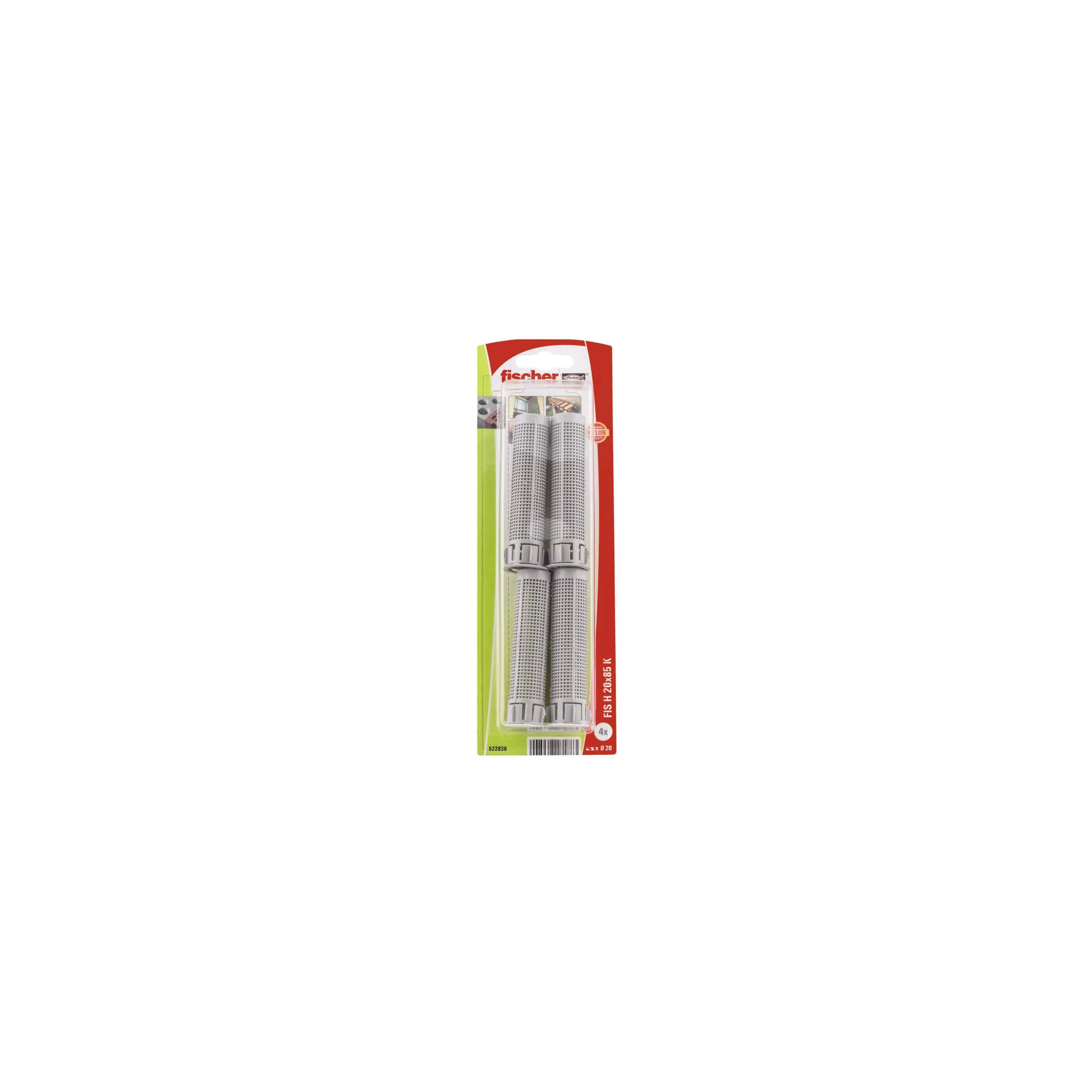

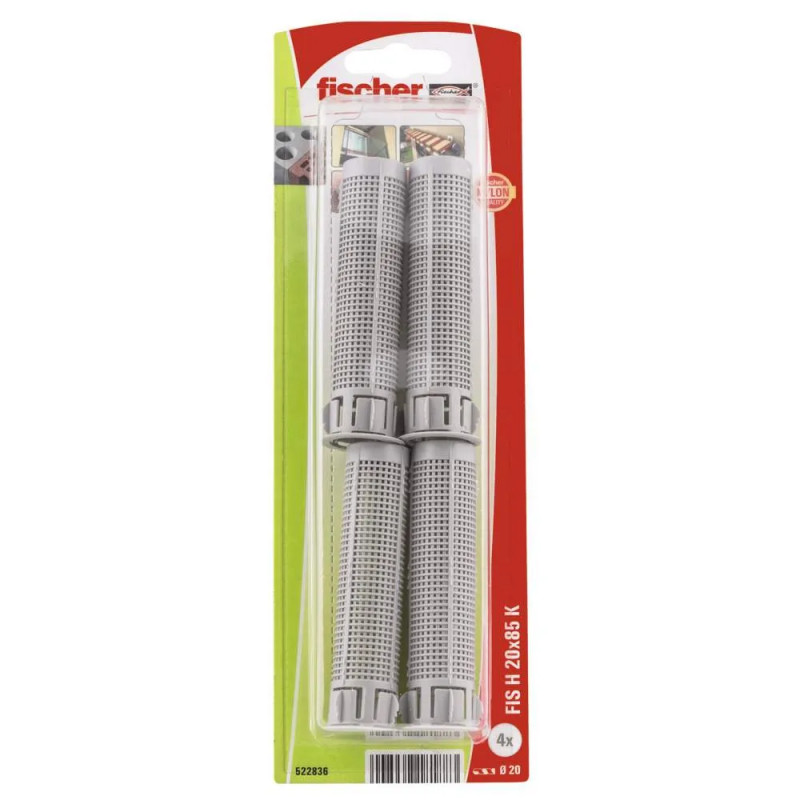

Screen 20x85 mm for chemical sealing, 4 pieces
€6.77
Tax Included
(5.64 € HT)
Référence Fischer : 522836
Emplacement magasin : A2-D-031
Chemical seal Fischer. Screen 20x85 mm for chemical sealing, 4 pieces reference 522836.
Safety guarantees(to be modified in the "Reinsurance" module)
Delivery policy(to be modified in the "Reinsurance" module)
Returns policy(to be modified in the "Reinsurance" module)
The FIS H K plastic injection screen is the system component for using fischer resins in hollow masonry. The screen is inserted into the borehole and filled with resin from the bottom. When the threaded rod or threaded sleeve is inserted, the resin is compressed through the mesh structure of the sieve and creates a form lock in the hollow brick. The load is thus transferred into the building material. The injection sieve can also be used to penetrate non-bearing layers.
Benefits
- The grid structure of the FIS H K screen is suitable for FIS V, FIS HT II, FIS GREEN or FIS Plus resins and ensures economical resin consumption with optimal shape lock.
- The guide wings centre the anchor perfectly in the sieve and allow the use of threaded rods of different diameters.
- The barbs hold the screen firmly in the hole, allowing for trouble-free ceiling mounting.
- The geometry of the sieve allows it to pass through non-bearing layers for convenient and simple installation.
Applications
- Anchoring in hollow masonry with FIS V, FIS V Plus, FIS HT II, FIS Plus and FIS GREEN resins
Materials
Approved for :
- Brick with vertical perforations
- Lightweight hollow concrete block
- Hollow concrete block
- Perforated sand-lime brick
- Solid sand-lime brick
- Solid brick
Also suitable for :
- Hollow pumice slabs
- Hollow material slabs and other perforated bricks
- Pumice and other solid building materials
Details (building materials, loads, etc.) of the approval, if available, apply
Operation / Assembly
- Depending on the application, FIS V Plus, FIS VW Plus HIGH SPEED, FIS VS LOW SPEED, FIS HT II, FIS Green or FIS PLUS resins can be used.
- The system consisting of the injection screen and the threaded rod FIS A or FIP G, or the threaded sleeve FIP M, is suitable for standby installation.
- The injection screen is inserted into the hole and filled with resin from the bottom.
- When the anchor is inserted, the resin is compressed through the mesh structure of the injection screen and adapts optimally to the substrate. The load is taken up by form-locking.
Technical data
| ETE approval | |||
| Nominal drill diameter | d0 | 20 | [mm] |
| Min. drilling depth | h1 | 95 | [mm] |
| Min. anchoring depth | hef | 85 | [mm] |
| Content | 4 x FIS HK 16 x 130 |
7 Items
Data sheet
- Length (cm):
- 8,5
- Width (cm):
- 8,5
- Weight (kg) :
- 0,05
- Packaging:
- 4
- Main materials :
- Plastique
- Warranty:
- 2 years
Specific References
- EAN13
- 4048962181883
- EAN-13
- 4048962181883
- Location
- A2-D-031
- Reference to display
- FISTA522836
- Supplier reference
- 522836
