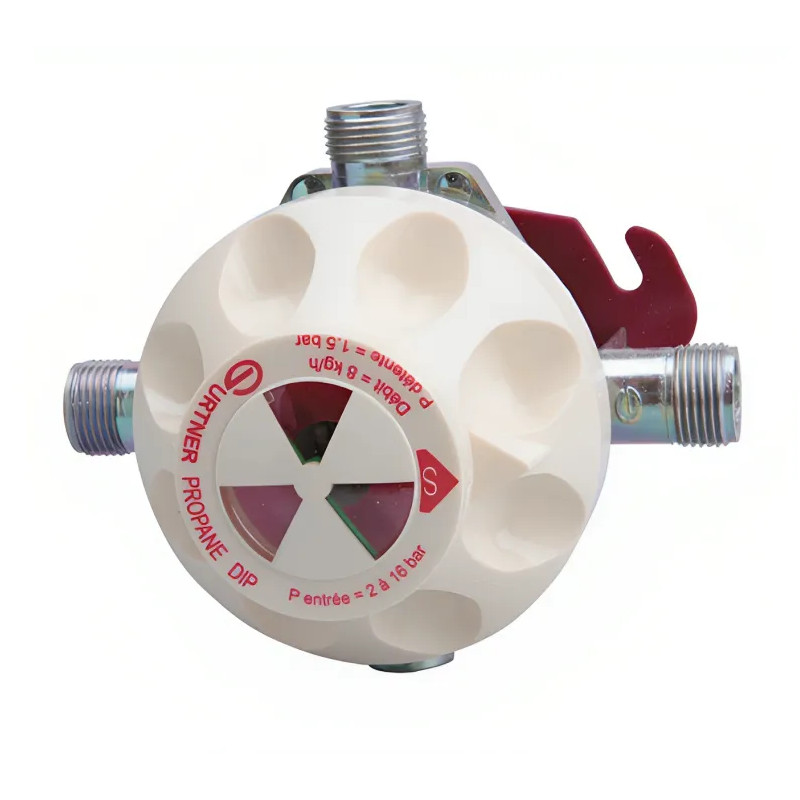

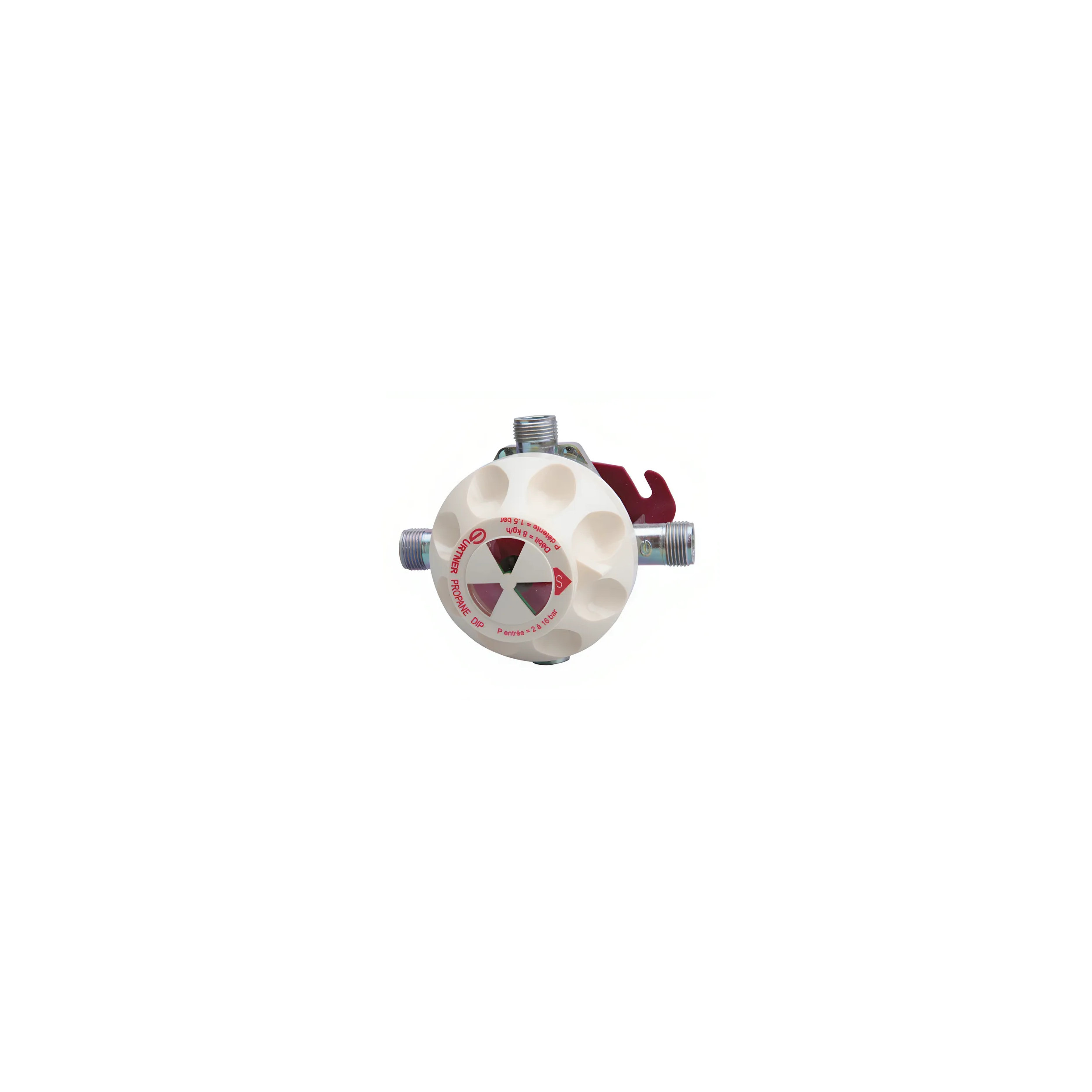

Reversing regulator Propane, D.I.P 8 KG/H 1,5 BAR GURTNER reference 20760.N.
Propane 8kg/h reversing regulator with integrated reserve service indicator. Allows 1st expansion of the system between the cylinder and the DSP (Propane Safety Pressure Reducing Valve). Male inlet and outlet 20x150.
They ensure continuity of gas supply to the system by automatically switching between empty and full cylinders. These devices provide the system's first pressure relief.
Technical specifications :
- Output: 8 kg/h
- Upstream pressure: 16 bar
- Downstream pressure: 1.5 bar
- Male input: 20x150
- Male output: 20x150
- Built-in indicator: YES
Additional information:
- Weight(gr) : 890 g
- Length(mm) : 135 mm
- width(mm) : 110 mm
- Height(mm) : 100 mm
