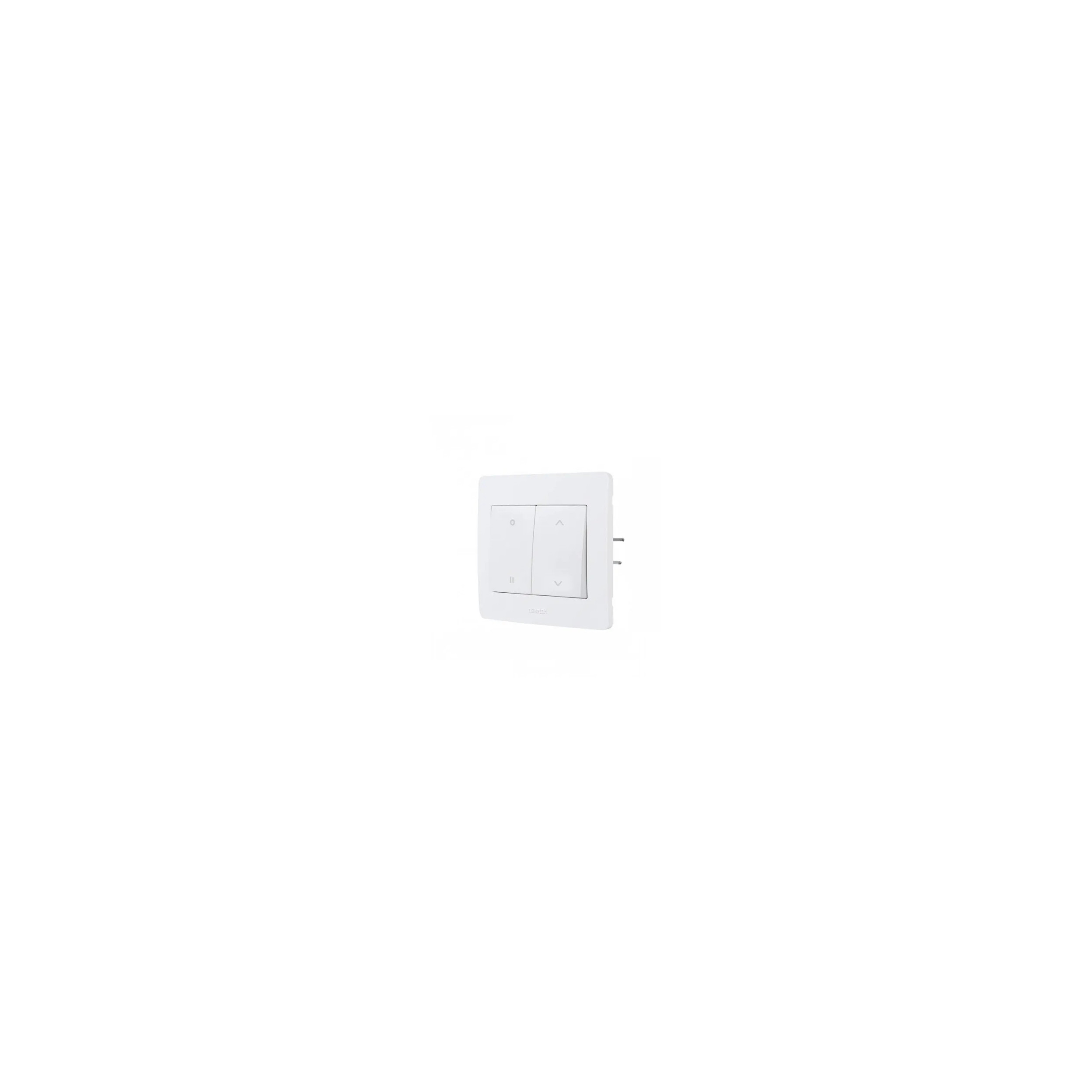

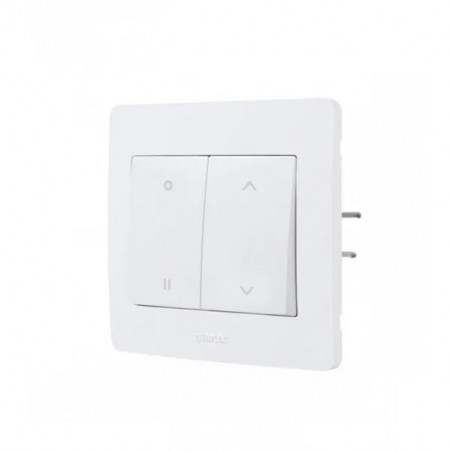

Roller shutter switch DIAMANT white
€13.80
Tax Included
(11.50 € HT)
Référence DEBFLEX : 739270
Emplacement magasin : B2-G-065
Appareillage série mosaïc et casual DEBFLEX. Roller shutter switch DIAMANT white reference 739270.
Safety guarantees(to be modified in the "Reinsurance" module)
Delivery policy(to be modified in the "Reinsurance" module)
Returns policy(to be modified in the "Reinsurance" module)
Roller shutter switch DIAMANT white.
- Roller shutter control
- Color: white
- Packaging : in film
- 10A - 250 V
Composition:
- 1 Double Shutter Switch Body
- 1 Double button
- 1 Plate
| Net Unit Weight ( g ) | 63,5 |
| Depth Built-in | 23 |
| Dimensions L x W x D (mm) | 85x82x37 |
| RAL/Pantone | RAL 000 90 00 |
| Materials | ABS/ABS/PC |
| Terminal cross-section / capacity | 1.5mm² maximum |
| Stripping L (mm) | 9mm |
| Screw head | Philips No. 3 |
| Type of terminals | car terminals |
| Number of keys | 2 |
| Compatible Box Depth | 40 mm |
| Operating temperature (°C) | 5 => 35°C |
| Sealing level | IP20 |
| Shock resistance | IK02 |
| Incandescent wire resistance (°C) | yes |
| Fire resistance | 650°C |
| Nominalcurrent (I) | 10A |
| Nominal voltage (V) | 250V - 50Hz |
| Nominal power (W) | 500 |
| Lifetime (no. of cycles) | 20000 |
| Dielectric strength | 2000 V |
| UV resistance | yes |
| Storage temperature | -5 => 50°C |
4 Items
Data sheet
- Weight (kg) :
- 0,1
- IP index :
- IP20
- Voltage (V) :
- 250
- Warranty:
- 2 years
- Contient du bois :
- Non
Specific References
- EAN13
- 3142187392701
- EAN-13
- 3142187392701
- Location
- B2-G-065
- Reference to display
- DEBCO739270
- Supplier reference
- 739270
