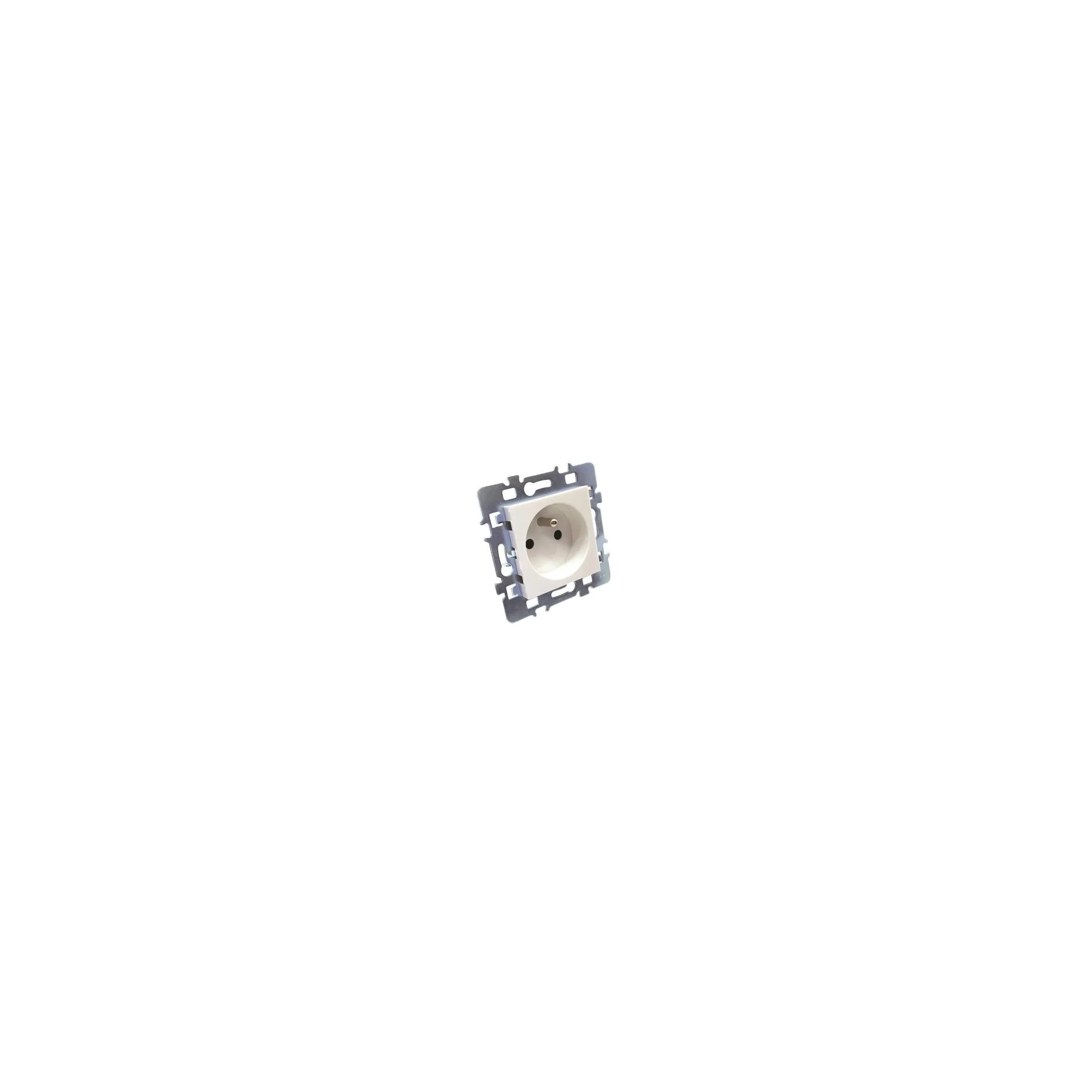

Grounded socket and metal bracket for Casual Glossy White, screw connection
€12.84
Tax Included
(10.70 €HT + Ecotaxe €0.02HT)
€12.20
with code
WELCOME5
Profitez de -5% sur votre 1er commande !
-
5%
Référence DEBFLEX : 742951
Emplacement magasin : B2-G-062
Appareillage série mosaïc et casual DEBFLEX. Grounded socket and metal bracket for Casual Glossy White, screw connection reference 742951.
Safety guarantees(to be modified in the "Reinsurance" module)
Delivery policy(to be modified in the "Reinsurance" module)
Returns policy(to be modified in the "Reinsurance" module)
| GENERAL DESCRIPTION | |
| Commercial range | CASUAL |
| Number of posts ( H-V ) | 1 |
| Full designation | CASUAL 2P+T mechanism + White cover + metal support |
| Assembly of the System | ENCASTER |
| MAIN CHARACTERISTICS | |
| Function | PC 2P+T |
| Composition | Mechanism with function cover + metal support |
| Number of Terminals | 3 |
| Fixing method | by screw |
| Claws | not |
| Paint cover | not |
| Finish | Brilliant |
| Color | White |
| TECHNICAL DATA | |
| Net Unit Weight ( g ) | 64,6 |
| Dimensions L x W x D (mm) | 48x48x40 |
| RAL/Pantone | White |
| Materials | PC/ABS |
| Diameter | Ø67 mm |
| Terminal cross-section / capacity | 2.5mm². |
| Stripping L (mm) | 9 |
| Type of terminals | Screws |
| Compatible Box Depth | 40 |
| ENVIRONMENTAL FEATURES | |
| Operating temperature (°C) | -5°C to 50°C |
| Sealing level | IP20 |
| Incandescent wire resistance (°C) | 850°C |
| Fire resistance | Yes |
| Nominalcurrent (I) | 16A |
| Nominal voltage (V) | 250V |
| Lifetime (no. of cycles) | 5,000 cycles |
| UV resistance | Yes |
| Storage temperature | -5 to 50°C |
| STANDARDS, APPROVALS & CONTRACTS | |
| Warranty | 2 years |
| CE certification | NO |
| NF Certification | YES |
| Reference standard | NF C 61-314 |
| ROHS | Compliant |
15 Items
Data sheet
- Weight (kg) :
- 0,1
- Main materials :
- ABS
- Voltage (V) :
- 250
- Amperage (A) :
- 16
- Warranty:
- 2 years
Specific References
- EAN13
- 3142187429513
- EAN-13
- 3142187429513
- Location
- B2-G-062
- Reference to display
- DEBPR742951
- Supplier reference
- 742951
