GENERAL DESCRIPTION

DIAM2 CommercialRange

Number of stations (H-V ) 1

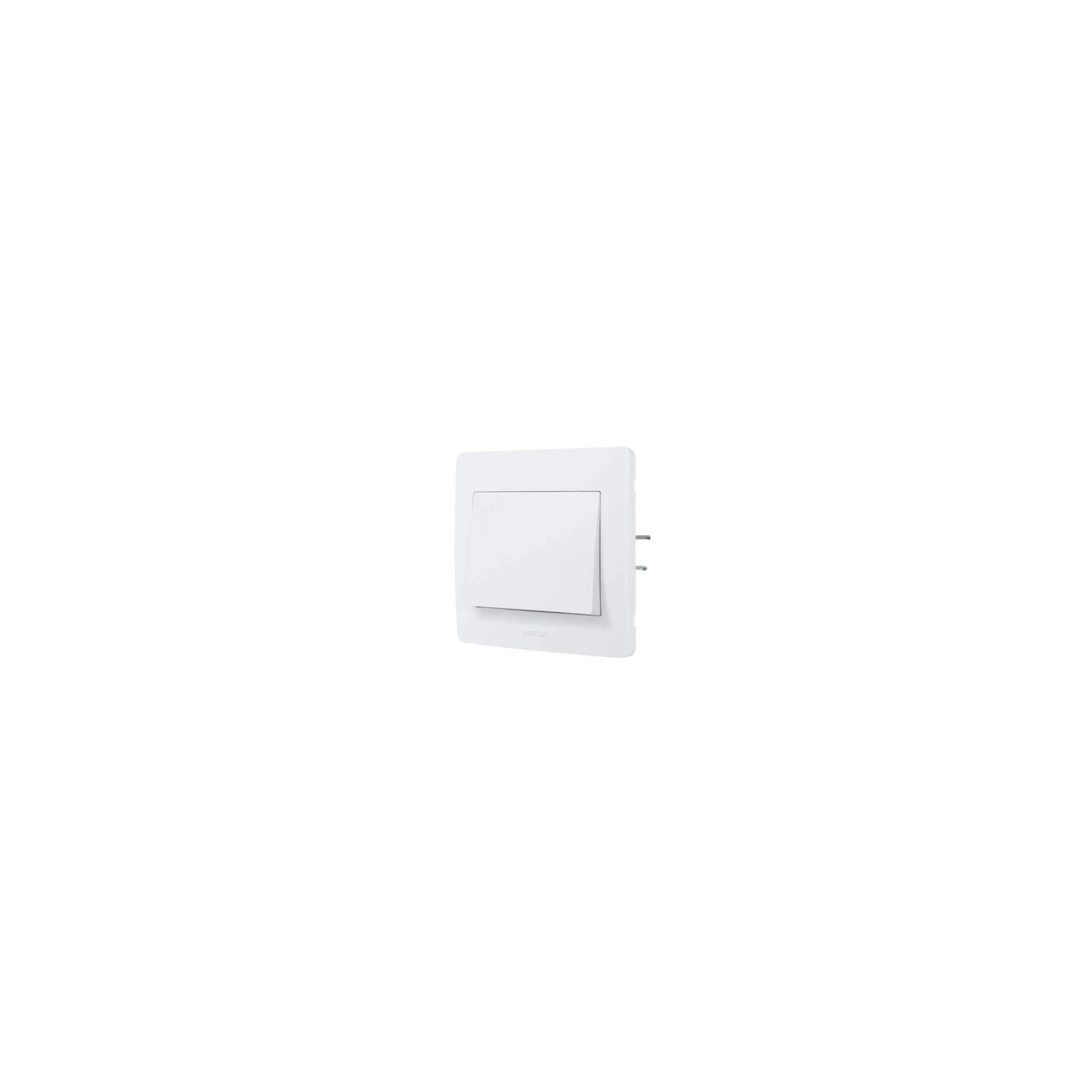

Full designation WHITE PUSH BUTTON UNDERWRITTEN

Mounting of the ENCASTRE system

MAIN CHARACTERISTICS

Device function

Product Overview ON/OFF Pushbutton Function with Automatic Terminals

Composition MECHANISM/PLATE/HOUSE

PCB (Multipledevente) 10

Number of terminals 2

Fixing method screws or claws

Film package

Claws Yes

Painting cover No

Matte finish

Color WHITE

TECHNICAL DATA

Net Unit Weight (g) 52.5

DepthInlay 23

Dimensions L x W x D(mm) 85x82x37

RAL/Pantone RAL 000 90 00

EDITION OF03/02/2017 PAGE 1/2

Materials ABS/ABS/PCDiameter-

Cross-section / capacity of the terminals 1.5mm².

StrippingL(mm) 9mm

Philipsscrewdriver head no. 3

Terminal type BORNESAUTO

Numberofkeys 1

DepthCompatibleBox 40 mm

ENVIRONMENTAL FEATURES

T°Function(°C) 5 =>35°C

IP20 sealing level

Shock resistance IK02

Glow wire (°C) yes

Fire resistance 650°C

NominalCurrent(I) 10A

Nominal voltage(V) 250V -50Hz

Rated power(W) 2200

Lifetime(nbcycles) 20000

2000V electrical supply

UV resistance yes

Storage temperature -5 =>50°C

STANDARDS, APPROVALS & CONTRACTS

2 year warranty

CertificationCE YES

CertificationNF YES

Reference standard NF EN60669

ROHS -
