(5.16 €HT + Ecotaxe €0.02HT)
GENERAL DESCRIPTION
DIAM2 Commercial Range
Number of positions ( H-V ) 1
Full designation 2P+T WHITE SOCKET UNDER FILM
Installation of the ENCASTRE System
MAIN CHARACTERISTICS
Device function
Presentation of the product 2 Pole + Earth socket with automatic terminals
Composition MECHANISM/PLATE/HOUSE
Number of Terminals 3
Fixing method screws or claws
Film package
Claws Yes
Paint cover No
Matte finish
Color WHITE
TECHNICAL DATA
Net Unit Weight ( g ) 58
Depth Built-in 31
Dimensions L x W x D (mm) 85x82x42
RAL/Pantone RAL 000 90 00
Materials ABS/ABS/PC
Terminal cross-section / capacity 2.5mm².
Stripping L (mm) 9mm
Philips screw head n°3
Type of terminals AUTO TERMINALS
Number of keys 1
Compatible Box Depth 40 mm
ENVIRONMENTAL FEATURES
Operating temperature (°C) 5 => 35°C
IP20 sealing level
Shock resistance IK02
Incandescent wire resistance (°C) yes
Fire resistance 650°C
Nominalcurrent (I) 16A
Nominal voltage (V) 250V - 50Hz
Nominal power (W) 3600
Lifetime (nb cycles) 5000
Dielectric strength 2000 V
UV resistance yes
Storage temperature -5 => 50°C
STANDARDS, APPROVALS & CONTRACTS
2 year warranty
CE certification YES
NF Certification YES
Reference standard NF C 61-314
Data sheet
Specific References
No customer reviews for the moment.

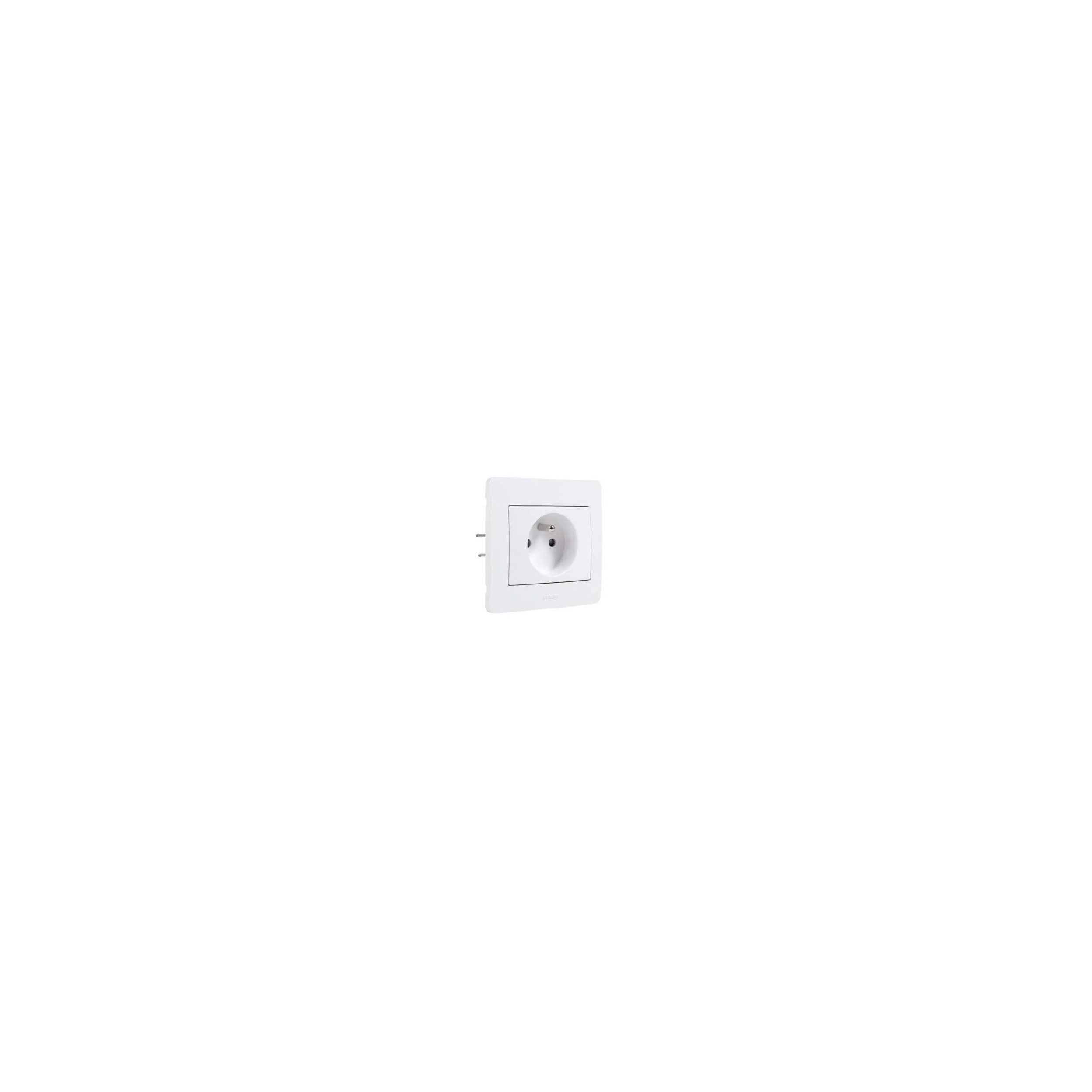

Socket 2P+T Diam2 white
