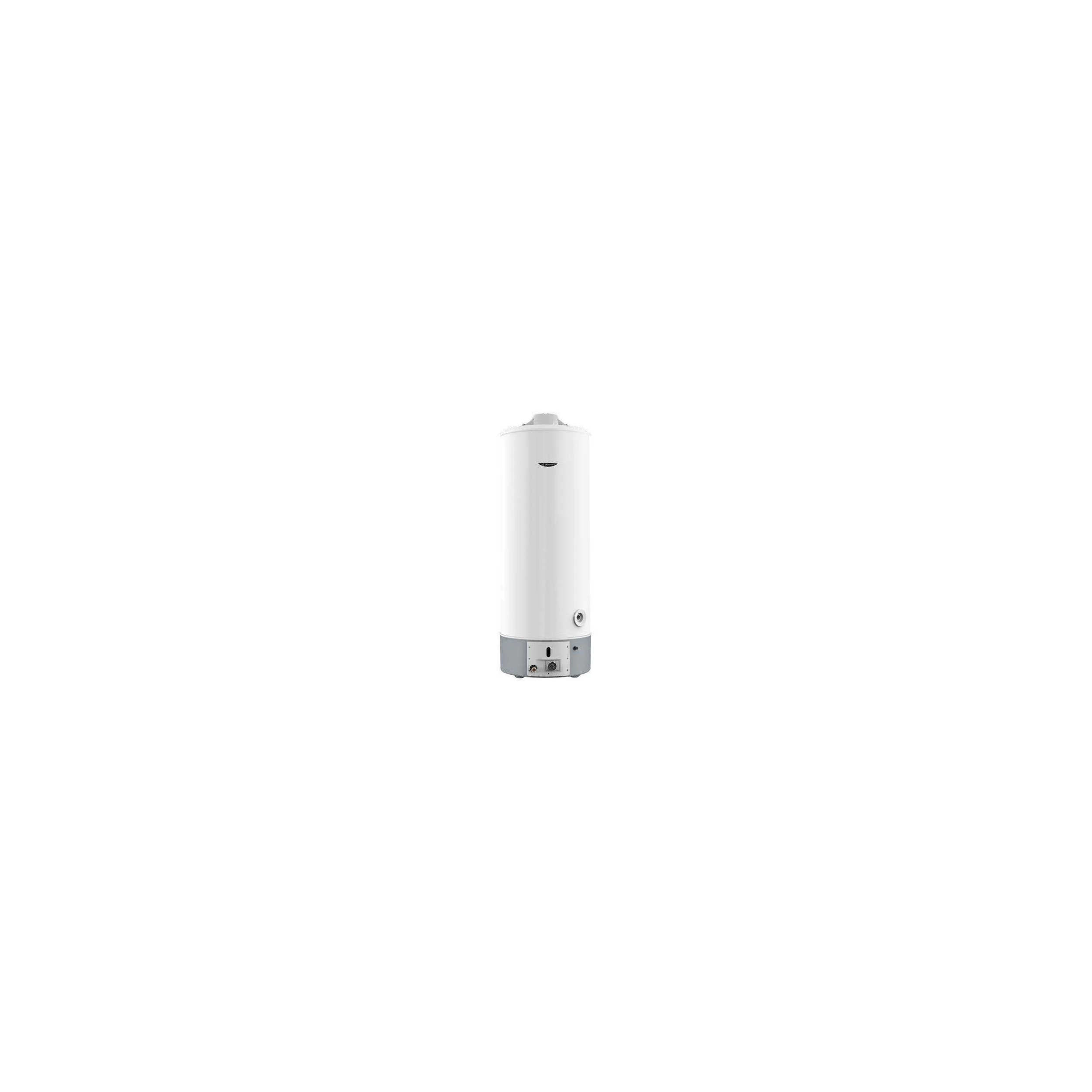

155l gas accumulator with suction cup, SGA BF X 160 (without suction cup)
€1,424.58
Tax Included
(1187.15 €HT + Ecotaxe €14.30HT)
Prix public: 1410.28 € TTC (1175.23 € HT)
Référence STYX : 3211234
Emplacement magasin :
155l gas accumulator with suction cup, SGA BF X 160 (without suction cup)
STYX: 3211234
Safety guarantees(to be modified in the "Reinsurance" module)
Delivery policy(to be modified in the "Reinsurance" module)
Returns policy(to be modified in the "Reinsurance" module)
Accumulator designed for installations requiring horizontal flue gas evacuation.
- Control and safety system with thermocouple and thermostatic valve.
- Enamel-protected steel bowl with magnesium anode.
- Low-Nox burner.
- Piezoelectric ignition. Electricity-free operation.
- External temperature control.
- Eco setting at 60°C.
- Maximum suction tube length: 90 cm. (SOLD SEPARATELY REF 704760)
- Unit connected with horizontal suction cup Ø 60/100 mm, available as accessory.
- Supplied in G20 natural gas with butane-propane pouch.
Please note that this product is not compatible with gas installations in Germany.
| Models | 120 | 160 | |
| GENERAL CHARACTERISTICS | |||
| ErP class ECS | B | B | |
| Declared filling profile | L | L | |
| DHW storage capacity | l | 115 | 155 |
| Balloon type | sol-ventouse | sol-ventouse | |
| Maximum cylinder operating pressure | bar | 7 | 7 |
| Gas category | G20, G31 | G20, G31 | |
| Connection type | C12, C32 | C12, C32 | |
| DOMESTIC HOT WATER | |||
| Rated power | kW | 5.5 | 5.5 |
| Power output | kW | 5.1 | 5.1 |
| Heating time at ΔT=45°C | min | 48 | 65 |
| Continuous flow at ΔT=30°C | l/h | 110 | 110 |
| Quantity of hot water at ΔT=40°C | l | 181 | 198 |
| Min/max operating temperature | °C | 40 / 72 | 40 / 72 |
| Maximum sanitary supply pressure | bar | 7 | 7 |
| PERFORMANCE | |||
| Cooling constant | Wh/l.k.24h | 1.25 | 1.04 |
| Heat loss Ua | W/K | 6.00 | 6.07 |
| ELECTRICITY | |||
| Supply voltage | V | 230 | 230 |
| COMBUSTIONPRODUCTS | |||
| Pipe diameter | mm | 60/100 | 60/100 |
| Maximum length | m | 0.9 | 0.9 |
| DIMENSIONS - WEIGHT | |||
| W x D x H | mm | 495x520x1230 | 495x520x1500 |
| Net weight | Kg | 51 | 56 |
2 Items
Data sheet
- Weight (kg) :
- 60
- Warranty:
- 2 years
Specific References
- EAN13
- 5411692074968
- EAN-13
- 5411692074968
- Location
- Reference to display
- MTSAC3211234
- Supplier reference
- 3211234
