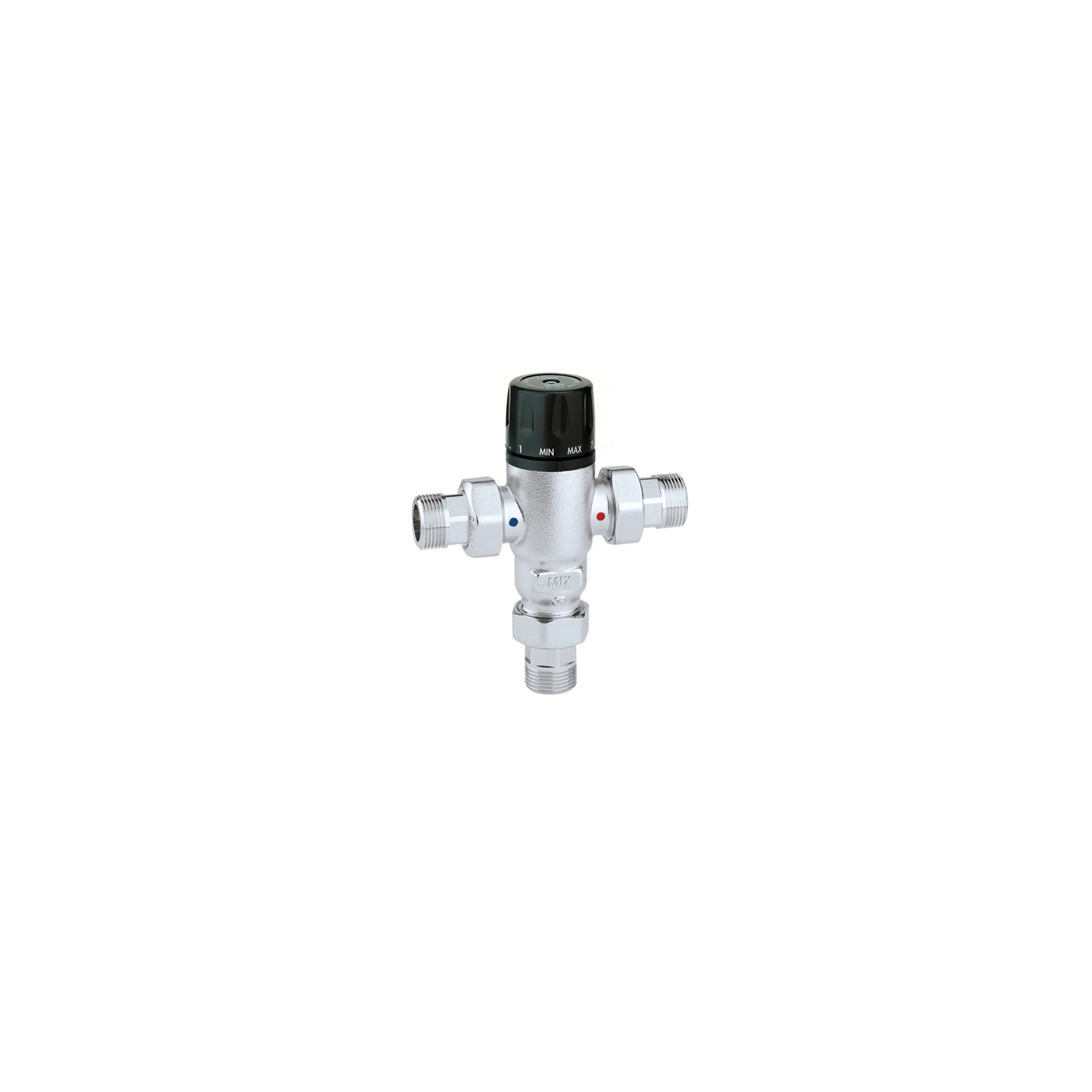

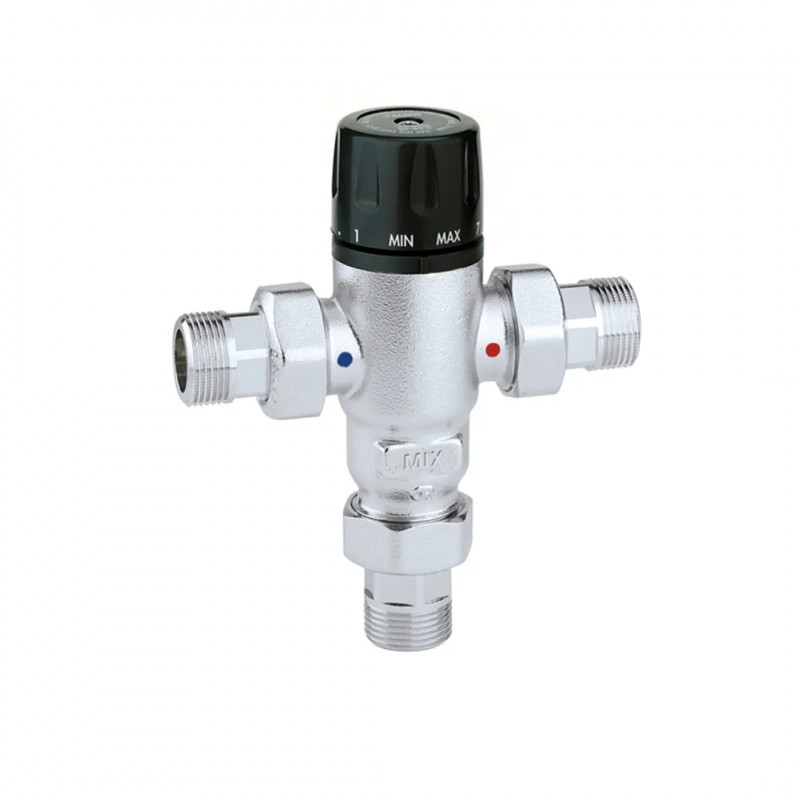

CALEFFI 521 thermostatic mixing valve, 20 x 27 (3/4") for sanitary installations, 30 - 65 degrees with check valves
€176.87
Tax Included
(147.39 € HT)
Référence Thermador : MT52120C
Emplacement magasin : B1-G-064
Accessories for Thermador water heaters and solar heating systems. CALEFFI 521 thermostatic mixing valve, 20 x 27 (3/4") for sanitary installations, 30 - 65 degrees with non-return valves reference MT52120C.
Safety guarantees(to be modified in the "Reinsurance" module)
Delivery policy(to be modified in the "Reinsurance" module)
Returns policy(to be modified in the "Reinsurance" module)
CALEFFI 521 thermostatic mixing valve, 20 x 27 (3/4") for sanitary installations, 30 - 65 degrees with THERMADOR check valves part no. MT52120C

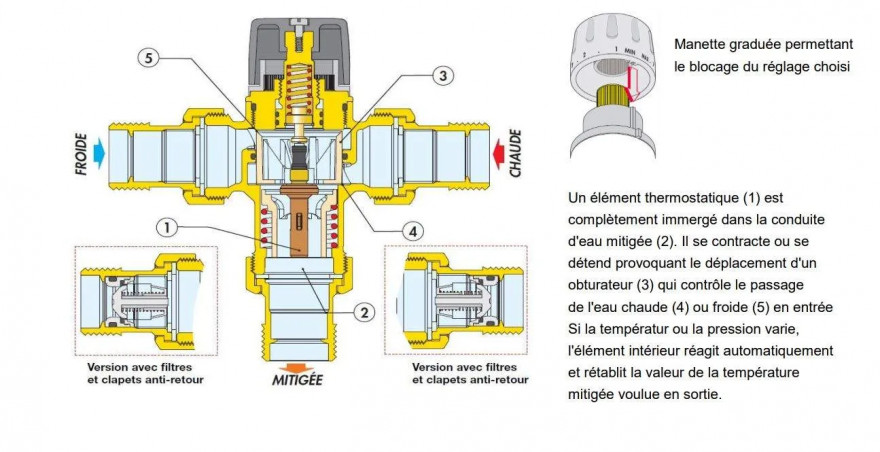

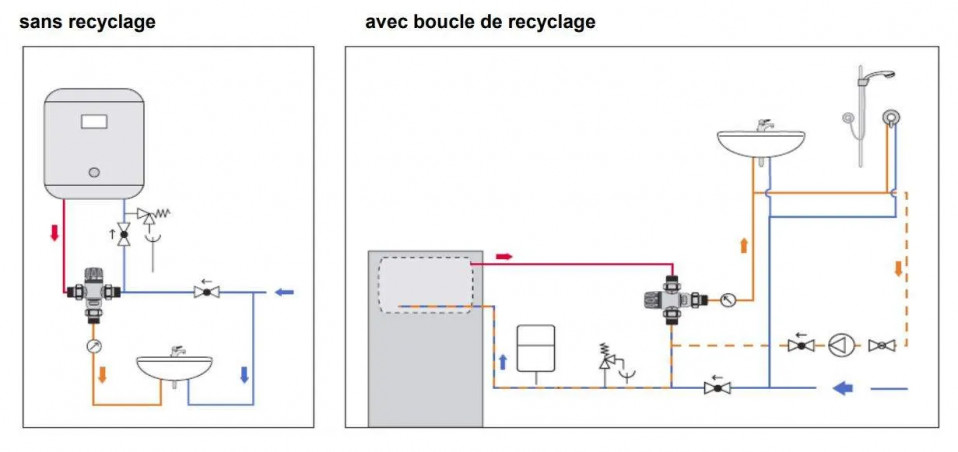

The MT521 thermostatic mixing valve installed at the tank outlet distributes domestic hot water at a constant temperature. It provides the comfort of immediate hot water, while saving considerable amounts of money.
T-mount.
EN 1287 approved.
For domestic buildings.
Chrome-plated brass body.
Closure material: PPO.
Spring materials: stainless steel.
Seal materials : EPDM.
Removable male fitting 20 x 27 (3/4") M.
Setpoint temperature can be locked.
With integrated non-return valves.
Max. static pressure: 14 bar/Dynamic: 5 bar.
Max. recommended flow rate: 2600 l/h (1 bar pressure drop).
Max. inlet temperature: 85°C.
Setting range: 30-35°C.
Solar: no.
Safety: thermal.
Manufacturer ref: MT52120C - 521503.
1 Item
Data sheet
- Weight (kg) :
- 1,07
- Warranty:
- 2 years
Specific References
- EAN13
- 8016615050332
- EAN-13
- 8016615050332
- Location
- B1-G-064
- Reference to display
- THRMIMT152120C
- Supplier reference
- MT52120C
