(148.09 € HT)
Description: GALLUS 2000 meters are deformable wall meters. The compartments each contain a movable watertight diaphragm, set in motion by the pressure difference between upstream and downstream. A distribution system with a single rotating spindle and a connecting rod allowing the transformation of the alternating movement of the bellows into a continuous rotational movement driving the mechanical totaliser. This measuring assembly is enclosed in a watertight casing. Special feature: - Smaller footprint. - Extended measuring range: G1.6 - G2.5 - G4 - Stability of metrological performance and robustness. - EEC approval - LF pulse generator pre-equipped as standard. |
Type | : G4 |
DN | : 20 |
Maximum flow rate | : 6 m3/h |
Maximum pressure | : 500 mb |
Dimensions | Size : 199x220x162 |
Centre distance | : 110 |
Data sheet
Specific References
No customer reviews for the moment.

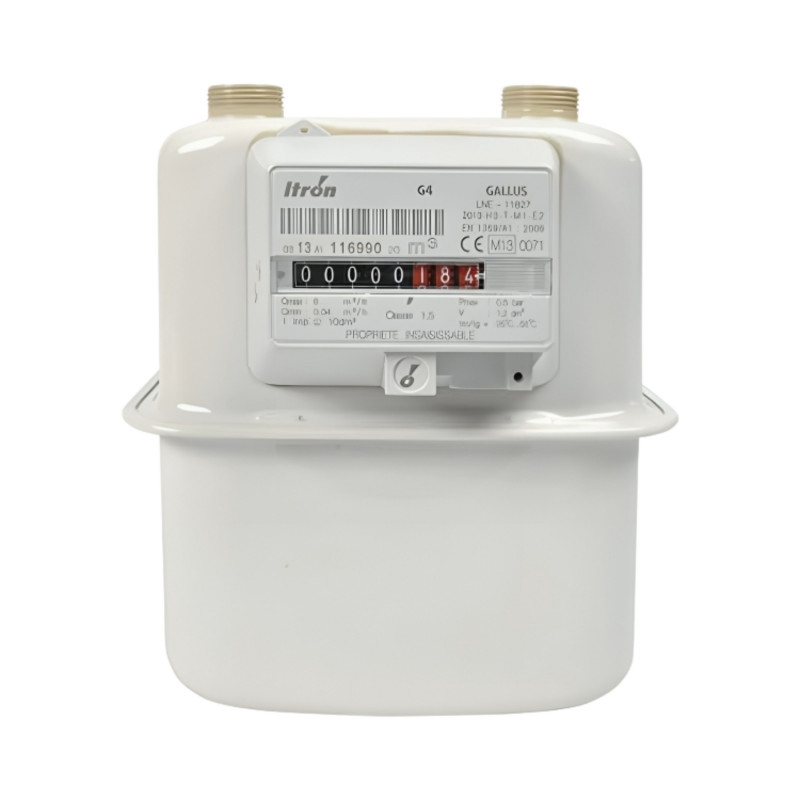

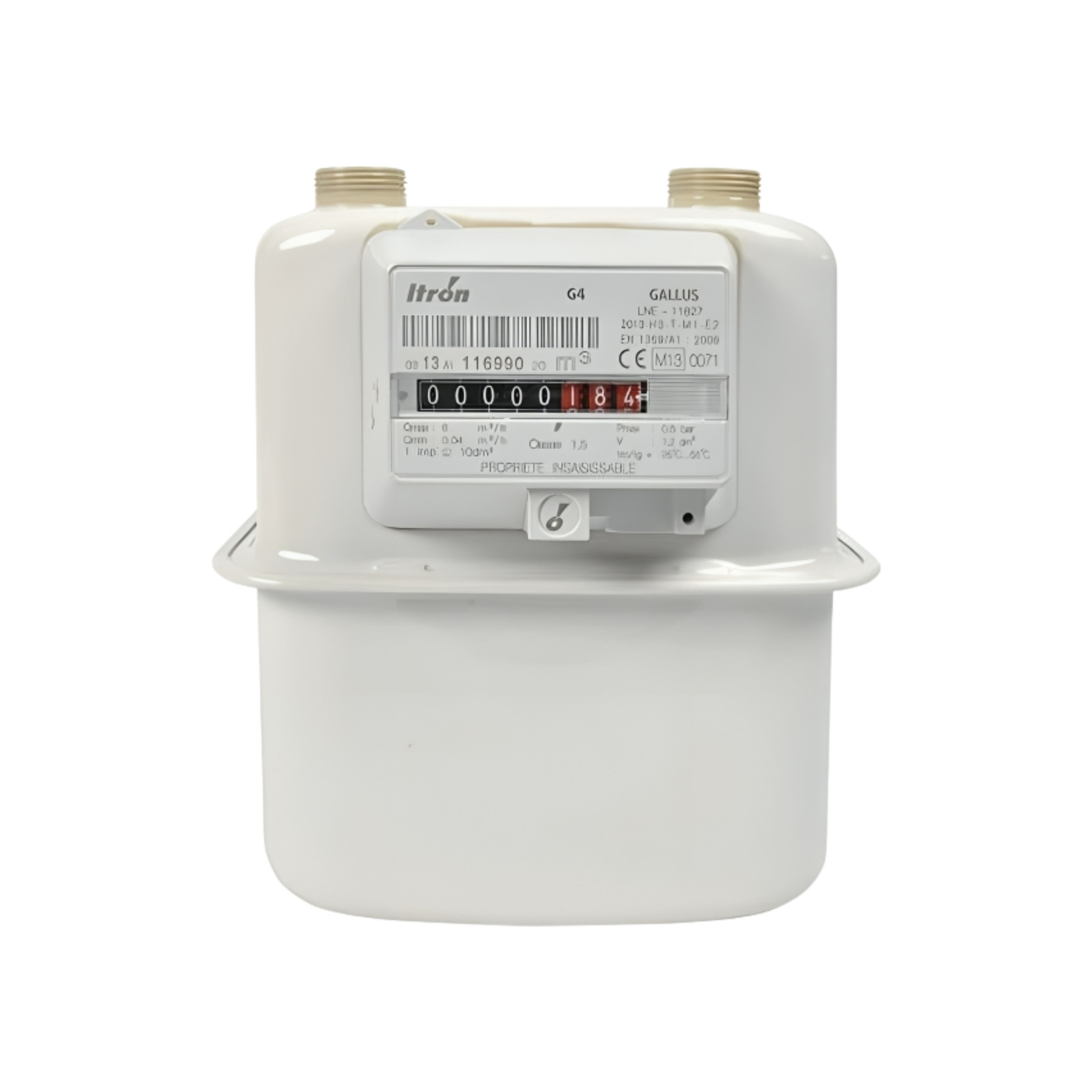

Gallus 2000 G4 low pressure gas meter
