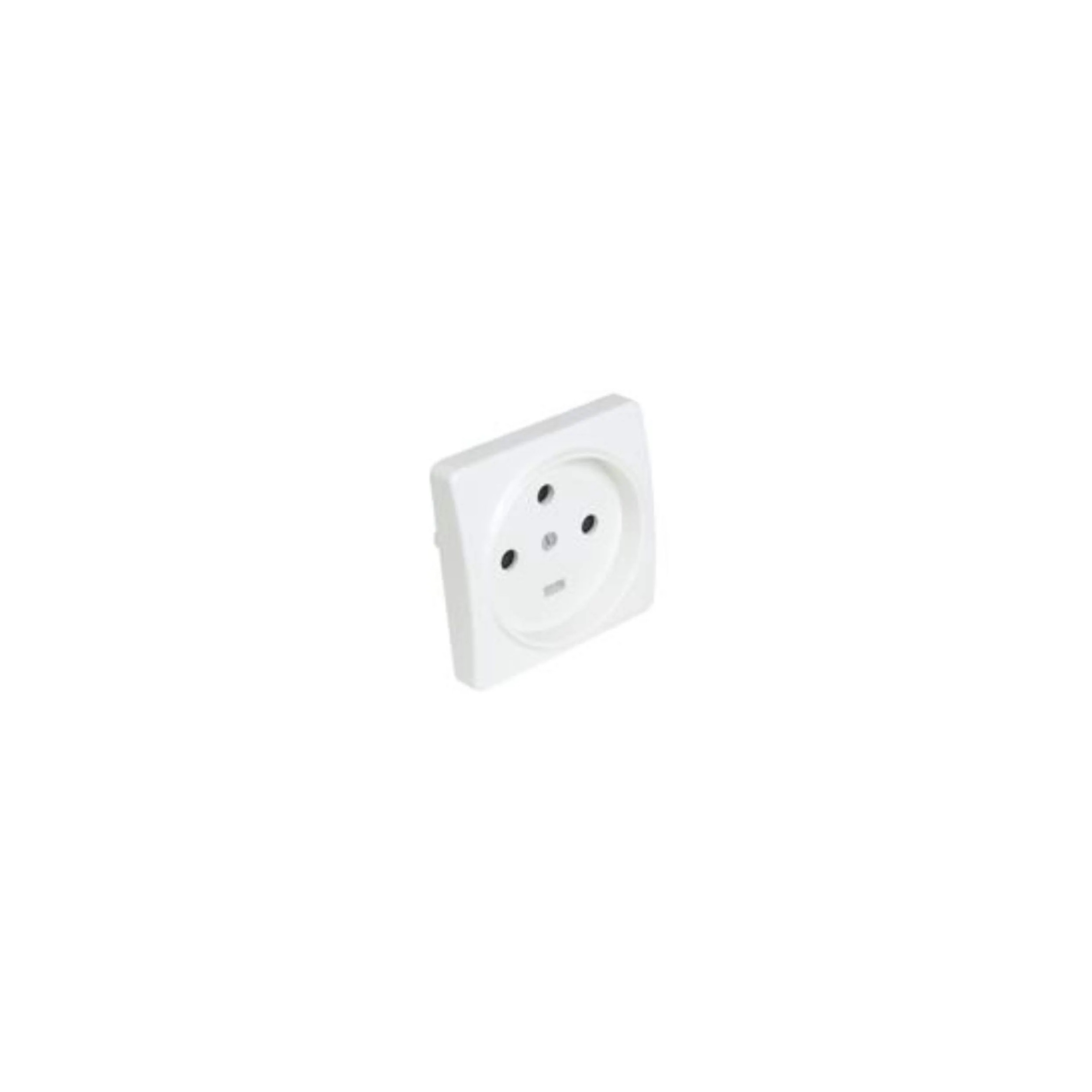

White power socket, 3-pole plus earth, 20A
€13.68
Tax Included
(11.40 € HT)
Référence DEBFLEX : 703830
Emplacement magasin : B2-G-067
20A power socket DEBFLEX. White power socket, 3-pole plus earth, 20A reference 703830.
Safety guarantees(to be modified in the "Reinsurance" module)
Delivery policy(to be modified in the "Reinsurance" module)
Returns policy(to be modified in the "Reinsurance" module)
GENERAL DESCRIPTION | |
| Commercial range | DEBFLEX |
| Number of posts ( H-V ) | 1 |
| Full designation | SOCKET 3P+T 20A WHITE |
| Assembly of the System | ENCASTER |
MAIN CHARACTERISTICS | |
| Function | Equipment |
| Product presentation | Socket 3P+T 20A |
| Composition | MECHANISM + PLATE |
| PCB (Multiple of sale) | 1 |
| Number of Terminals | 4 |
| Fixing method | SCREW |
| Packaging | sub-film |
| Claws | NO |
| Paint cover | No |
| Finish | MAT |
| Color | WHITE |
TECHNICAL DATA | |
| Net Unit Weight ( g ) | 88.6 |
| Depth Built-in | 40 |
| Dimensions L x W x D (mm) | 75x75x40 |
| RAL/Pantone | RAL 000 90 00 |
| Materials | ABS |
| Terminal cross-section / capacity | 6mm². |
| Stripping L (mm) | 9mm |
| Screw head | Philips No. 3 |
| Compatible Box Depth | 40 mm |
ENVIRONMENTAL FEATURES | |
| Operating temperature (°C) | 5 => 35°C |
| Sealing level | IP20 |
| Shock resistance | IK02 |
| Incandescent wire resistance (°C) | yes |
| Fire resistance | 650°C |
| Nominalcurrent (I) | 20A |
| Nominal voltage (V) | 400V |
| Nominal power (W) | 4800 |
| Lifetime (no. of cycles) | 20000 |
| Dielectric strength | 2000V |
| UV resistance | yes |
| Storage temperature | -5 => 50°C |
4 Items
Data sheet
- Weight (kg) :
- 0,2
- Main materials :
- ABS
- Voltage (V) :
- 230
- Amperage (A) :
- 20
- Warranty:
- 2 years
Specific References
- EAN13
- 3142187038302
- EAN-13
- 3142187038302
- Location
- B2-G-067
- Reference to display
- DEBPR703830
- Supplier reference
- 703830
